CSCI5607-FinalProj

Final project check-in

I will be making a CPU-bound path tracer (no GPU acceleration). Since Project 3 for this class was to make a ray tracer, I will outline the distinction more clearly below. Additionally, I will be working alone, since I also plan on submitting this project for the Gopher Graphics demoscene competition: “fastest ray tracer” category. I put the category name in quotes because the workshop they held was centered around a tutorial for making a rudimentary path tracer (rather than a ray tracer). As I mentioned wanting to do in Project 3, I also plan on implementing a fixed point math library to compare against the floating point implementation (I expect that usage of integer arithmetic will be a sizeable speed up).

Side note: this will be written mostly from scratch because I will be using glm for the vector math and Google’s reference implementation of webp for exporting images, and more importantly because I had some architectural choices in the ray tracer code that I do not want to keep. (I’m planning ahead for using an acceleration structure of some kind in this one.)

Progress plan

December 5th:

• Basic path tracing working with spheres (floating point math)
  • Rudimentary BRDFs (Lambertian diffuse)
  • Ambient occlusion, reflection, refraction
  • Supersampling, depth of field
• Area lights

December 8th:

• Fixed point math library
  • Drop-in replacement for glm math types
  • Build-time config flag to use fixed/floating point math
• BVH or other acceleration structure
• Cornell box

December 12th:

• Visualization of intermediate results (increasing depth) and convergence (increasing samples)
• More interesting BRDFs (maybe BTDFs?) and better Monte Carlo techniques

Expected result

First, let us establish what ray casting is (typical figures omitted for brevity). We assume that an image is to be created according to a perspective projection of a 3D scene. That is, each pixel is processed similarly, by casting a ray from the camera position towards the projection of the pixel location onto the image plane. This ray will then intersect a number of objects (or none), and the pixel corresponding to it will be colored based on the closest intersection (or lack thereof). No further rays are cast, so at best this can crudely shade objects with according to angles between tangent planes and light sources, but failing to account for occlusion by other objects.

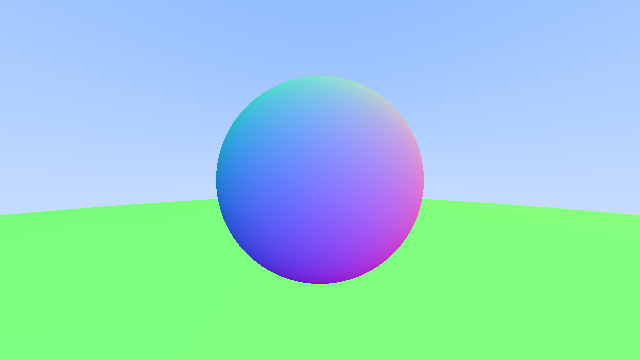

An image I created while scaffolding the code for this project, which uses only ray casting and colors the spheres based on their normals.

Then, let us distinguish what a ray tracer does in addition to ray casting. Upon intersection, we will compute the mathematical reflection of the ray according to the tangent plane of intersection (or “refraction” using Snell’s law, but in the end it’s still a deterministic singular ray). These created rays will be cast out from the location of intersection in the direction reflected (or refracted) to see what they may have hit. We would still apply the Phong lighting model (or something else that captures the effects of direct illumination), but now we can get objects to cast shadows on each other, as well as specular reflections and refractions (missing caustics).

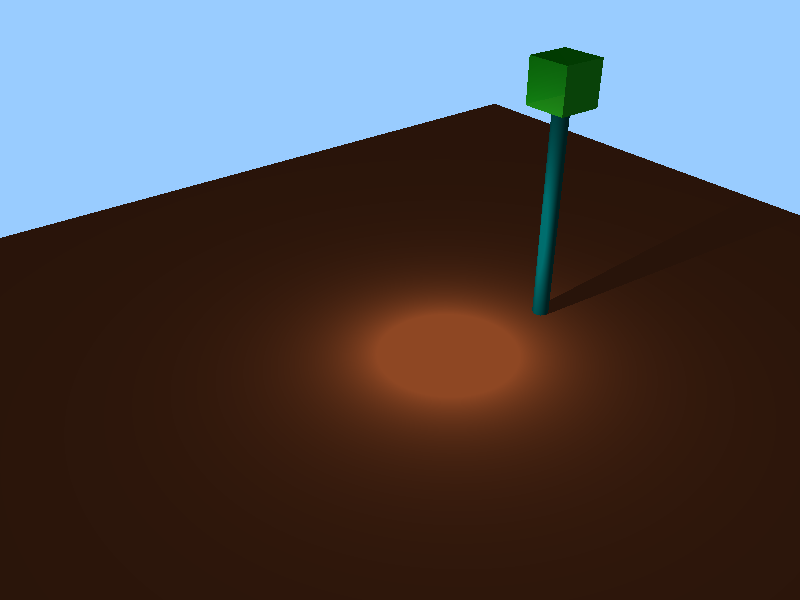

Sample image from my Project 3 ray tracer which shows the lamppost casting a shadow on the ground plane.

Finally, we describe a path tracer, which essentially casts exponentially more rays to better model the behavior of light in real life. Rather than just casting the mathematically reflected ray, we consider all possible “reflected” rays (weighted according to a probability distribution). In practice, analytic integration over the hemisphere of directions outwards from a tangent plane is not possible with arbitrary scenes, so we will be randomly sampling the hemisphere according to the probability distribution. By introducing stochasticism into the process, we will get potentially grainy images (maybe somewhat desirable for aesthetic reasons) and can take a number of approaches towards reducing said grain (the easiest is increasing the sample count to converge towards the true average). More importantly, we will also capture the effects of global illumination (diffuse reflections), ambient occlusion, and caustics (from refractive surfaces).

I don’t yet have a rendering of the Cornell box ready, but it showcases most of these things I’m talking about that distinguish path tracing as a technique from the more primitive ray tracing.

I will try to capture some of the effects described in these blog posts:

• Path Tracing – Getting Started With Diffuse and Emissive - Alan Wolfe
• Raytracing Reflection, Refraction, Fresnel, Total Internal Reflection, and Beer’s Law - Alan Wolfe

And may attempt to use some of these as more sophisticated sampling techniques:

• Interleaved Gradient Noise: A Different Kind of Low Discrepancy Sequence - Alan Wolfe
• The Unreasonable Effectiveness of Quasirandom Sequences - Martin Roberts
